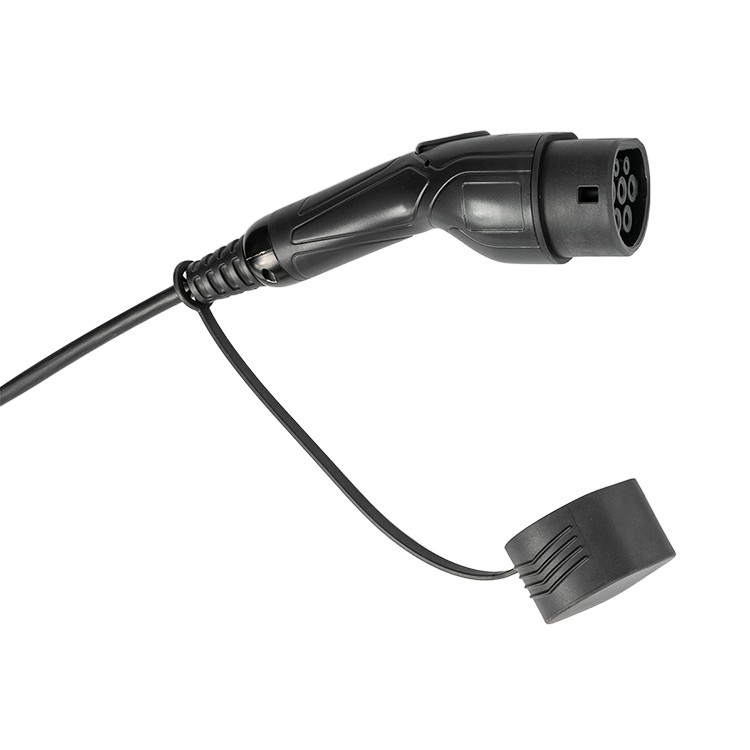

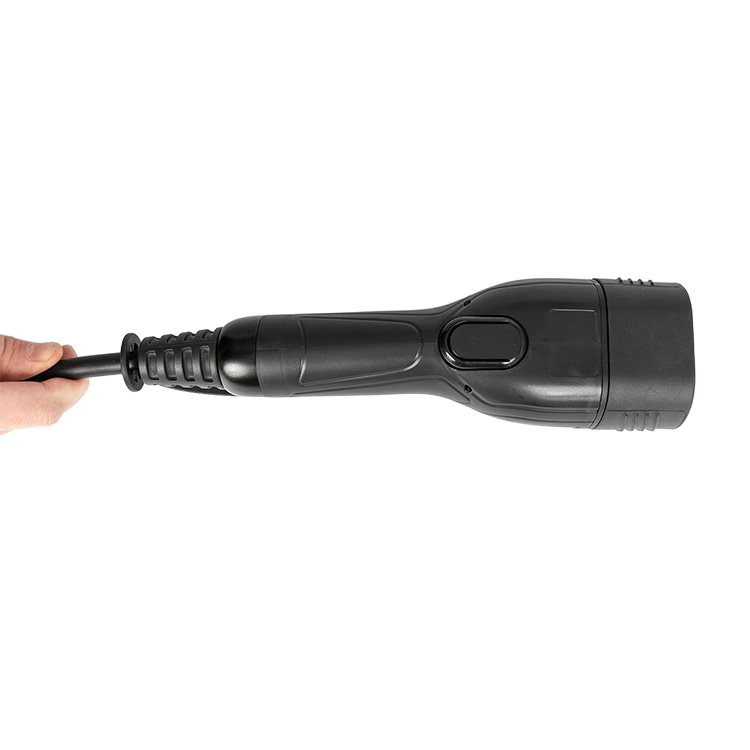

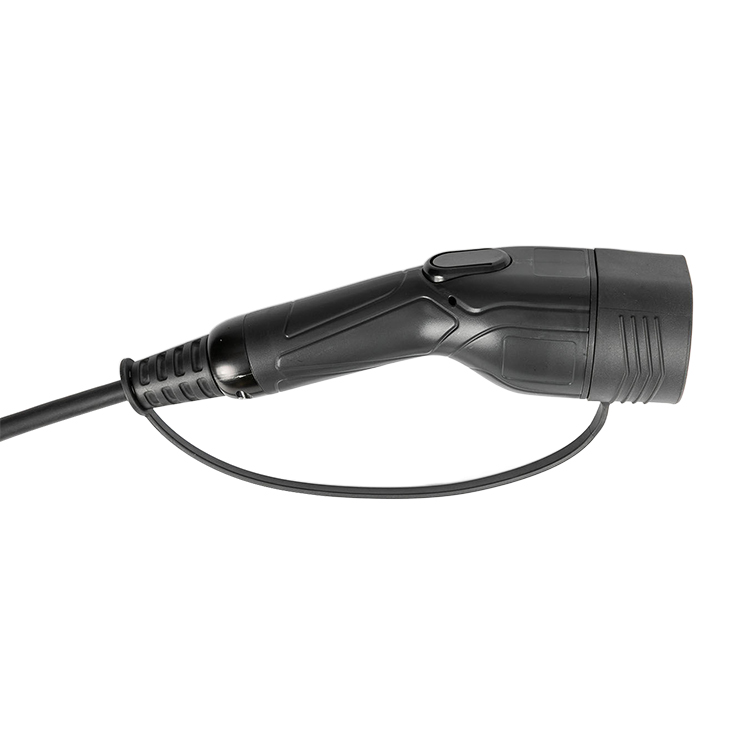

Latest selling MSDT-TEC® Type 2 AC Tesla Charging Cable with vehicle charging connector and open cable end, with smart switch for Tesla, Housing color black, for charging electric vehicles (EV) with alternating current (AC) via type 2 vehicle charging inlets, for installation at charging stations for electromobility (EVSE).
MSDT-TEC® Type 2 AC Tesla Charging Cable conforms to the provisions and requirements of IEC62196-2. Apply to Vehicle for Tesla model3, for Tesla Model S, for Tesla Model X. The product has a full range of certifications, such as TUV, CE.
Mechanical life: Insertion and Extraction,10000 times. Insertion and Extraction Force<100N. Impact resistance: be able to afford 1.5m drop.
Integrated handle structure with beautiful shape, no need for riveting. Ensure better waterproof performance and electrical performance. Hand-held design conform to ergonomic principle, plug conveniently. The material conforms to the latest European Union standards.
Keep the laser logo space for customer. Customized services include customized tail wiring mode and cables of different colors.
Product Type | Type 2 AC Tesla Charging Cable |
Standards/regulations | IEC62196.1-2014 IEC62196.2-2016 |
Ambient temperature (operation) | -30 °C ... 50 °C |
Withstand voltage | 2500V AC 1MIN |
Insulation resistance | >5MΩ 500V DC1MIN |
Degree of protection | IP54 (When plugged in and ready to operate) |
IP55 (Protective cap) | |
Rated Current | 16A,20A,32A |
Rated Voltage | 250V,480V |
Power | 3.7KW,11KW,7.4KW,22KW |
Phase | One Phase/Single Phase, Three Phase |
Cable Length | Regular 5m, Custom length is acceptable |
Raw Materials(Housing) | Thermoplastics, flame retardant grade UL94-0 |
Raw Materials(Contacts) | Copper alloy is plated with silver |
Raw Materials(Cable) | TPE |
Lead Time | It's usually three weeks. It's negotiable |
